The Solis 8kW Hybrid MPPT Solar Inverter (48V System) is a high-efficiency, smart energy solution designed to deliver reliable power for residential and small commercial applications. It seamlessly integrates solar energy, battery storage, and grid power to ensure uninterrupted electricity supply. Featuring advanced MPPT technology, the inverter maximizes solar energy harvesting, while its automatic on-grid/off-grid switching provides instant backup during power outages. Compatible with both lithium and lead-acid batteries, and equipped with smart monitoring and comprehensive protection features, the Solis 6kW Hybrid Inverter offers a flexible, efficient, and dependable solar power solution.

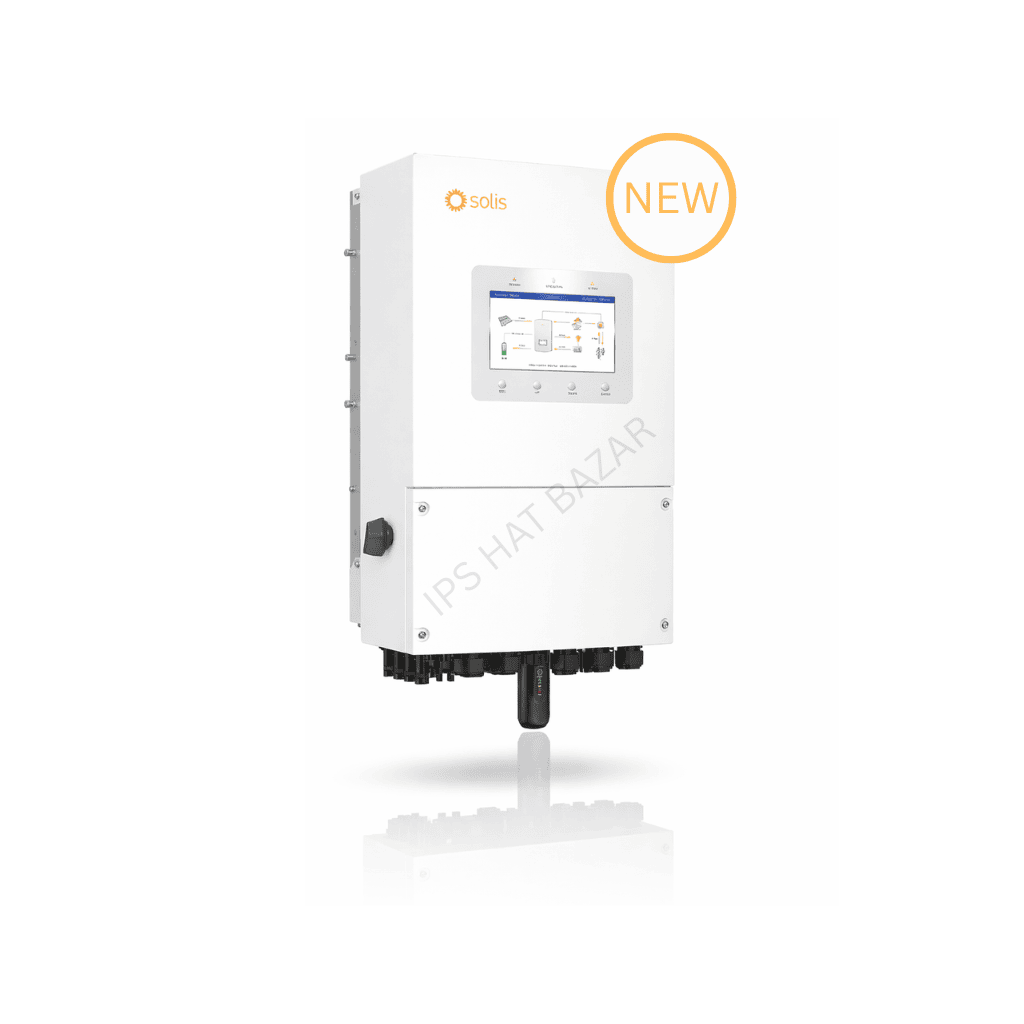

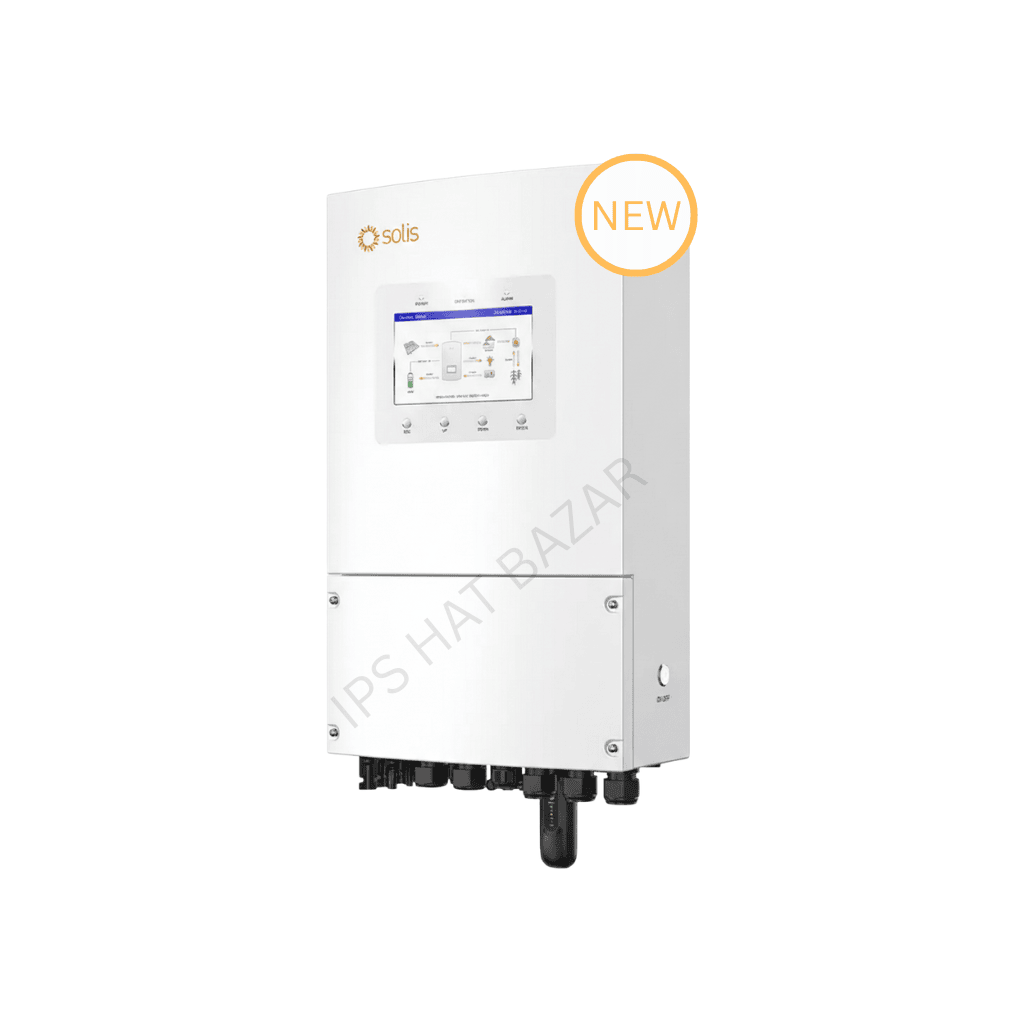

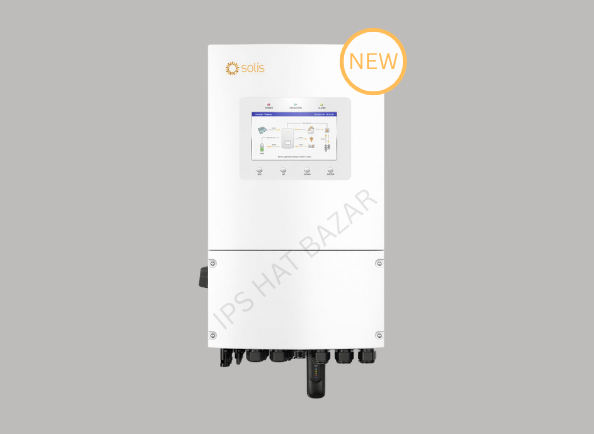

Solis 8kW Hybrid Solar Inverter

Model: S6-EH1P-8K-L-PLUS
Brand: Solis (Ginlong Technologies)
Series: SOLARATOR
Phase: Single Phase
System Voltage: 48V (Low Voltage)
Protection Level: IP66

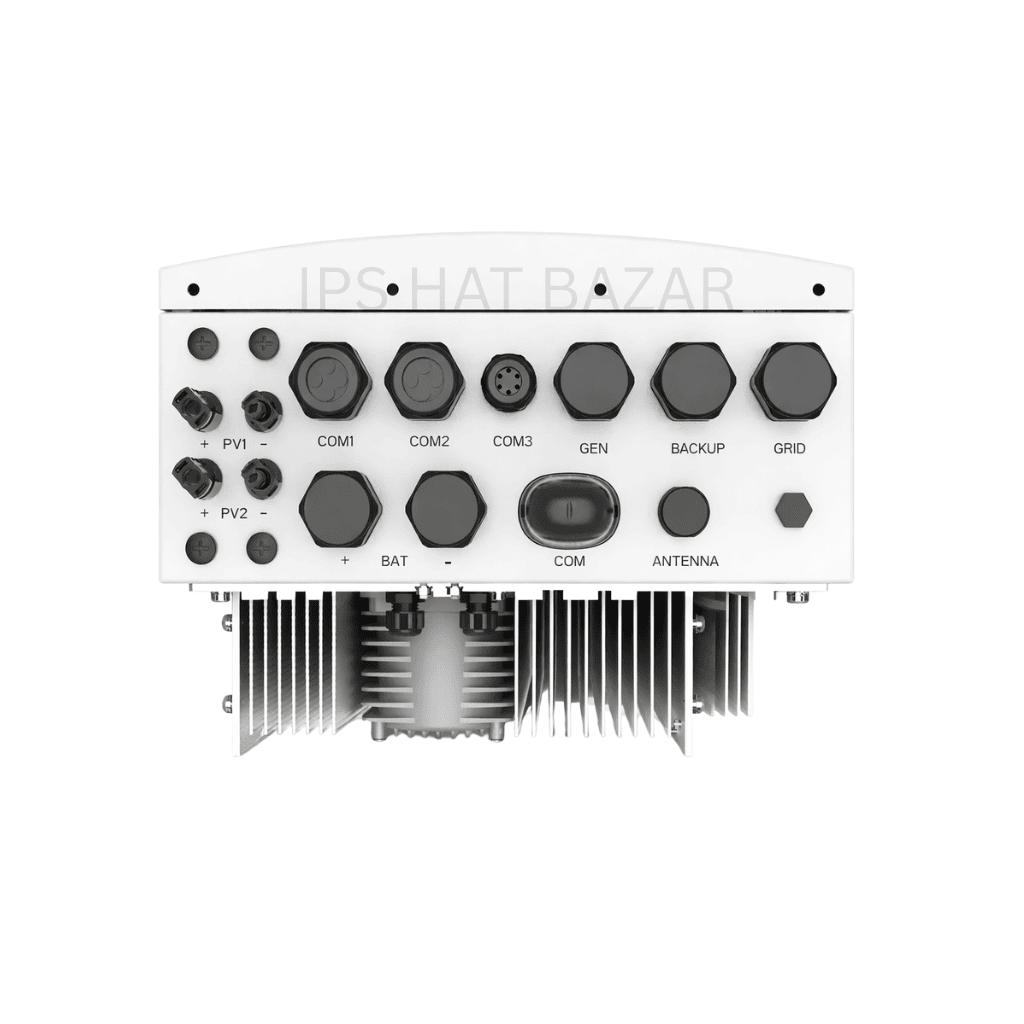

DC Input (PV Side)

·         Recommended max. PV array size: 16 kW

·         Max. usable PV input power: 12.8 kW

·         Max. PV input voltage: 500 V

·         Rated PV voltage: 330 V

·         Start-up voltage: 90 V

·         MPPT voltage range: 90 – 435 V

·         MPPT / Strings: 2 MPPT / 4 Strings

·         Max. input current: 32 A / 32 A

·         Max. short-circuit current: 40 A / 40 A

·         PV oversizing: Up to 160% supported

Battery Specifications

·         Battery type: Lithium-ion / Lead-acid

·         Battery voltage range: 40 – 60 V

·         Max. charge / discharge power: 8 kW

·         Max. charge / discharge current: 190 A

·         Battery communication: CAN / RS485

·         Compatible with any 48V battery system

AC Output (Grid Side)

·         Rated output power: 8 kW

·         Max. apparent power: 8 kVA

·         Rated grid voltage: 220 V / 230 V

·         Rated grid frequency: 50 Hz / 60 Hz

·         Rated output current: 36.4 A / 34.8 A

·         Max. output current: 36.4 A / 34.8 A

·         Power factor: > 0.99 (0.8 leading – 0.8 lagging)

·         THDi: < 3%

AC Input (Grid Side)

·         Input voltage range: 187 – 253 V

·         Max. input current: 50 A

·         Frequency range: 45–55 Hz / 55–65 Hz

AC Output (Backup / EPS Mode)

·         Rated backup power: 8 kW

·         Overload capability: 200% of rated power for 10 seconds

·         Transfer time: < 10 ms

·         Rated output voltage: L / N / PE, 220 V / 230 V

·         Rated frequency: 50 Hz / 60 Hz

·         THDv (@ linear load): < 2%

·         Max. AC passthrough current: 50 A

Generator Input

·         Max. generator input power: 8 kW

·         Max. input current: 36.4 A / 34.8 A

·         Rated frequency: 50 Hz / 60 Hz

·         Auto generator control: Supported

Efficiency

·         Max. efficiency: 96.2%

·         EU efficiency: 96.1%

·         Battery charged by PV (max): 95.3%

·         Battery discharged to AC (max): 93.8%

Protection & Safety

·         Anti-islanding protection

·         Ground fault monitoring

·         DC reverse-polarity protection

·         Integrated AFCI 2.0: Optional

·         Protection class:

o    I / II (PV & Battery)

o    III (Grid, Backup & Generator)

General Data

·         Dimensions (W × H × D): 335 × 560 × 253 mm

·         Weight: 23.8 kg

·         Topology: High-frequency isolation (battery side)

·         Operating temperature: -25°C to +60°C

·         Relative humidity: 0 – 100%

·         Noise level: < 65 dB(A)

·         Cooling: Natural cooling + intelligent fan

·         Max. altitude: 3000 m

·         Parallel operation: Up to 6 units

Display & Communication

·         Display: 7-inch industrial-grade LCD touchscreen

·         Communication: RS485, CAN

·         Optional: Wi-Fi, GPRS, LAN

·         Smart monitoring: SolisCloud (AI optimisation & remote control)
